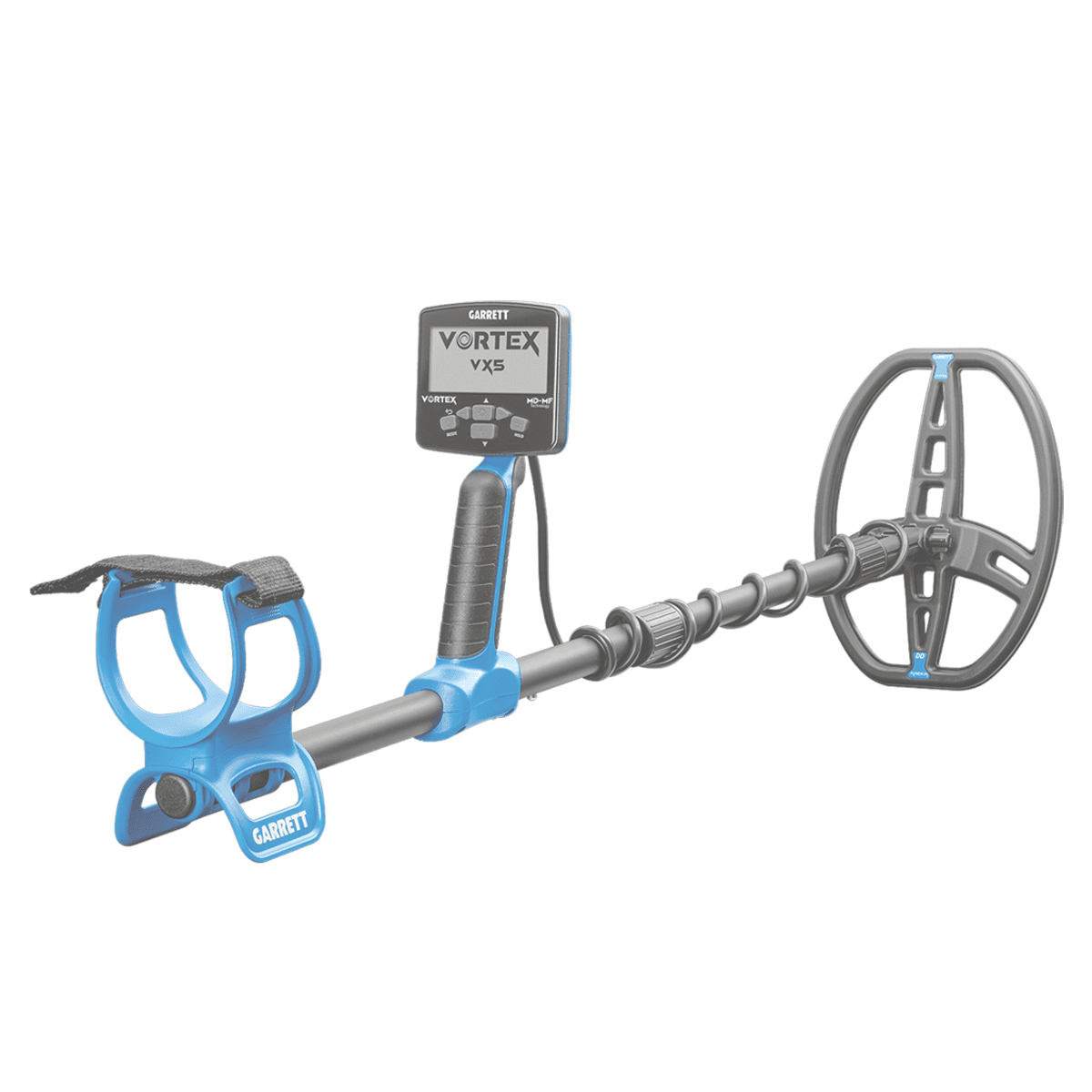

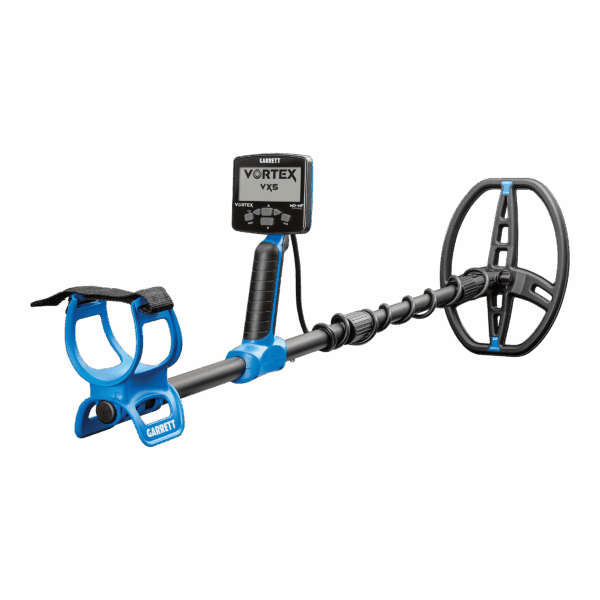

Garrett Vortex VX5
The entry Vortex model. Loaded with features and provides fast, fixed recovery speed on adjacent targets. Submersible to 16 feet (5 meters). Single and multi-frequency options.
Free Ground Shipping when you spend $100.00

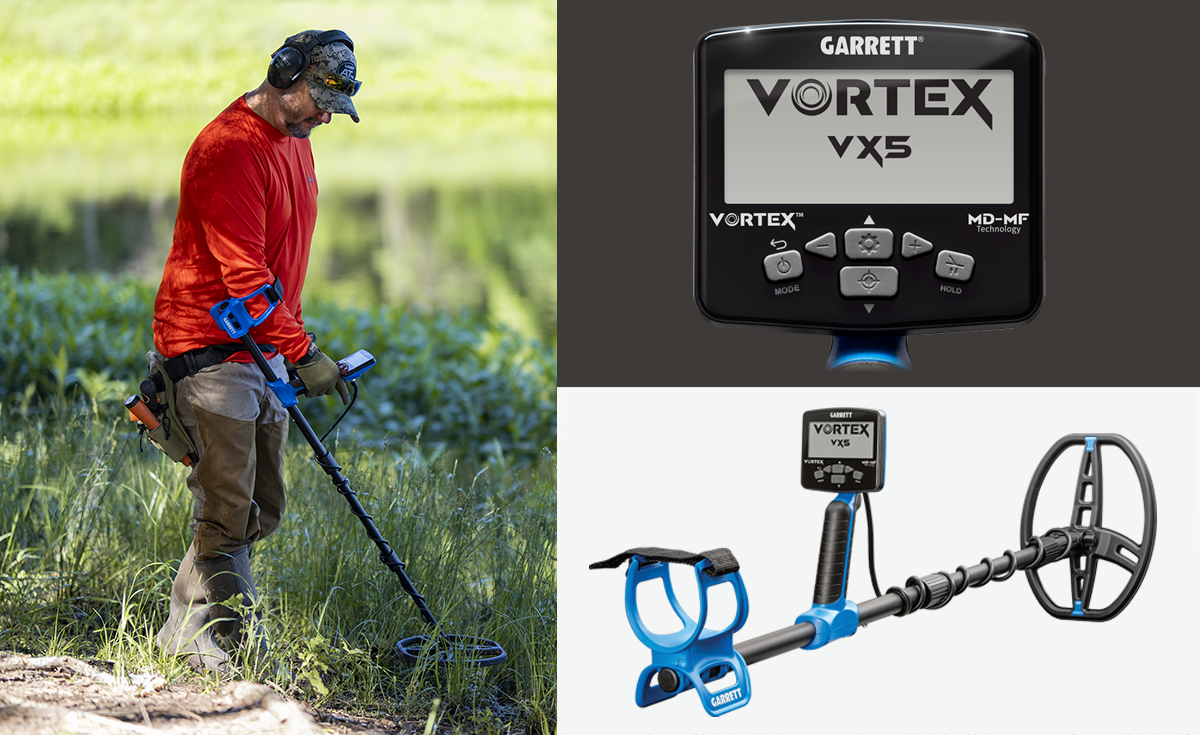

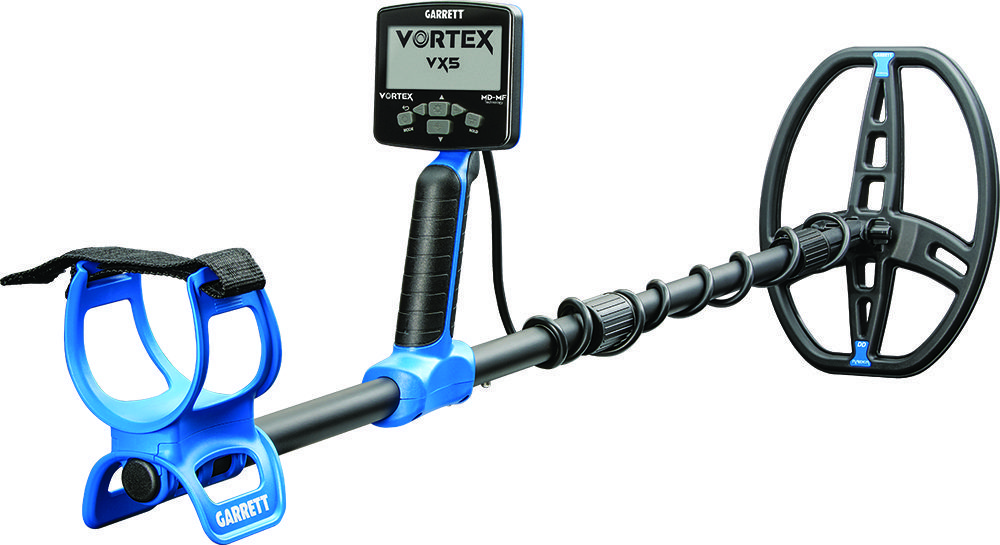

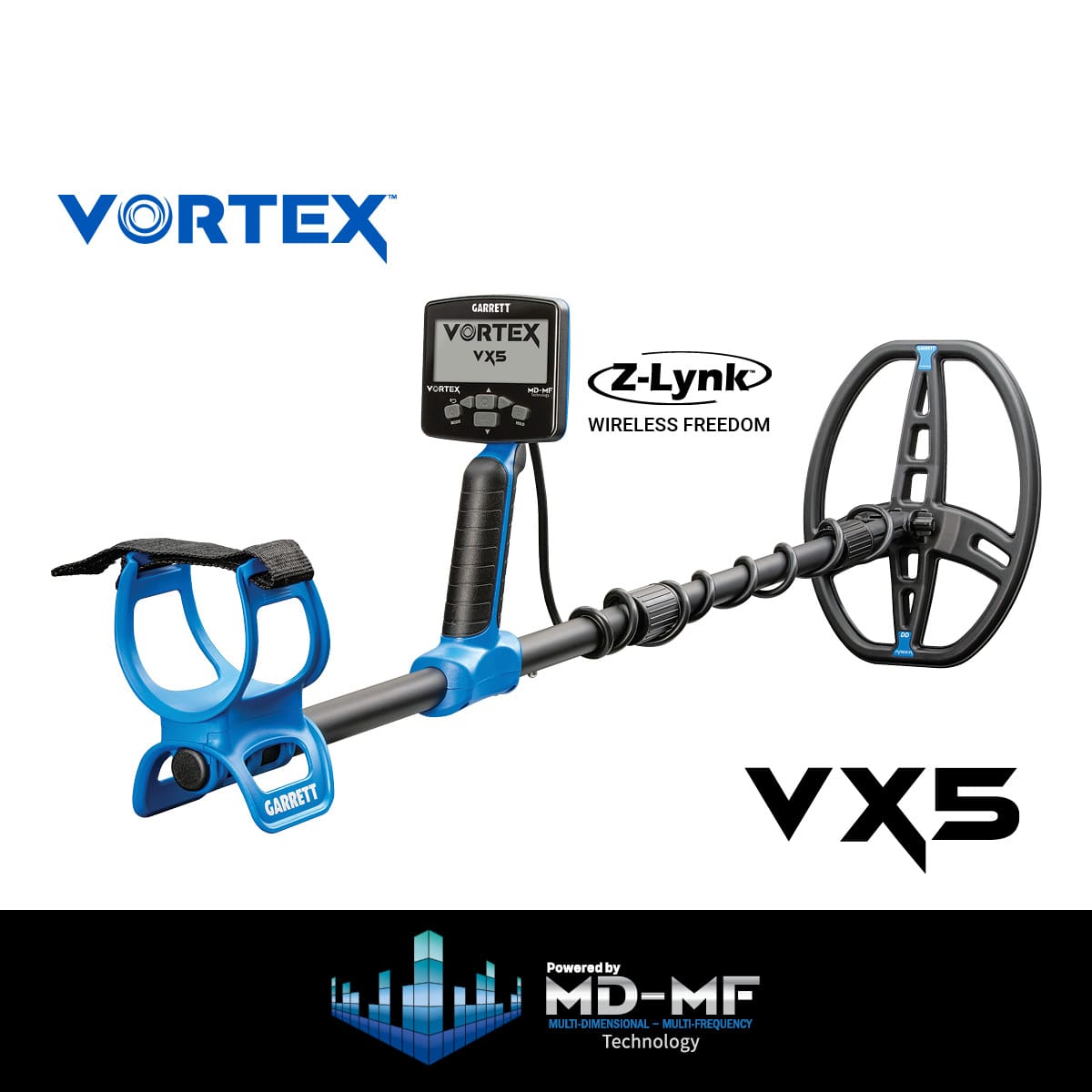

VX5
The entry Vortex model is loaded with features and provides fast, fixed Recovery Speed on adjacent targets. Fully waterproof to 16 feet (5m). Single and Multi-Frequency options. Single-tier MD-MF Target ID scale. Three audio tones.
Free shipping over $100
(U.S. Only)
Made in USA
3 Years warranty
Secure Payments
Sezzle payment
Online shop for USA customer only. For international customers click here to find a local Garrett dealer
PRODUCT HIGHLIGHTS
EXPLORE VORTEX

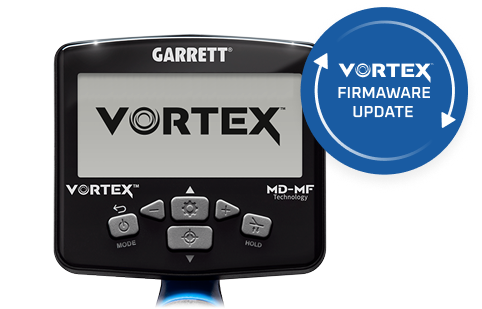

VORTEX VX5 FIRMWARE UPDATE
V5.04 Released 09.04.25
Improvements include:
- Improvements to Reaction Speed and recovery between adjacent targets.
- Significant improvements in recovery time between a large target (such as soda can) and a nearby small target.
- Further refinement of iron filters, for better unmasking of good targets hidden in iron trash.
- Increased detection depth for single frequency operation.
NOTE: Use the Garrett high-speed data cable provided to update Vortex and log into your Garrett Update app.
RECOVERY SPEED CONTROL
Select from Standard or Fast speed. Increased recovery/reactivity speed helps you more clearly distinguish adjacent metal objects. A great benefit for competition hunts and for hunt sites filled with unwanted metals that might otherwise mask good targets.

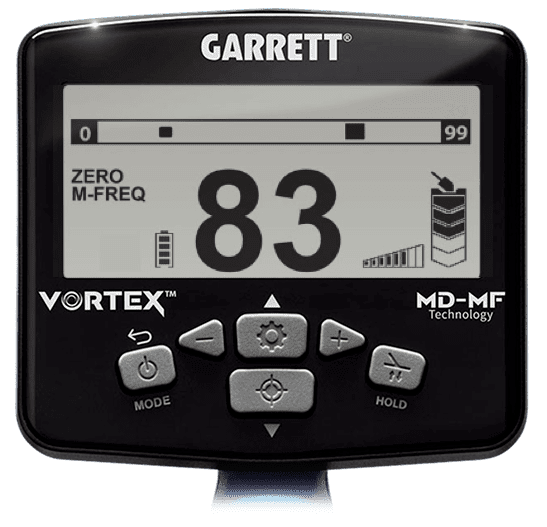

MORE TARGET INFORMATION . . . SO YOU CAN MAKE BETTER DIG DECISIONS!
VX5
The entry Vortex model is loaded with features and provides fast, fixed Recovery Speed on adjacent targets. Fully waterproof to 16 feet (5m). Single and Multi-Frequency options. Single-tier MD-MF Target ID scale. Three audio tones.
IRON VOLUME TO CONTROL WHAT YOU HEAR
Iron Volume allows you to decrease the volume of ferrous (iron) targets, while the volume of non-ferrous targets remains at normal level. Experienced treasure hunters often like hearing all targets, but will appreciate the option to decrease the volume of undesired items. Eight adjustment levels.
INCLUDES BEACH MODE AND MULTI-FREQUENCY SALT OPERATION!
Harness the power of MD-MF Technology and Multi-Salt operation for smooth performance and accurate target ID in challenging environments. This waterproof metal detector delivers exceptional detection depth along wet beaches and in the surf, ensuring precise identification of targets even in mineralized conditions. Equipped with a waterproof search coil and full waterproof capability, it is fully submersible up to 16 feet, making it ideal for underwater treasure hunting and metal detecting in any terrain.
SEARCH MODE VERSATILITY
CHOOSE FROM 7 OPTIONS
- Thin Coins Mode
- Fast Mode
- Zero Discrimination
- Beach Mode
- Standard Mode (ideal for hunting relics, jewelry, and most international coins)
- USA Coins Mode
- Custom Mode
LIGHTWEIGHT AND COLLAPSIBLE!
This collapsible metal detector features a foldable design, compacting to just 24.75″ (62.86 cm) for easy storage and extending to 56.75″ (144.14 cm) for comfortable use.
Weighing only 3 lbs. (1.38 kg) with the coil cover installed, it’s the perfect choice for those who want a portable yet powerful tool for treasure hunting.
MD-MF TECHNOLOGY EXPLAINED

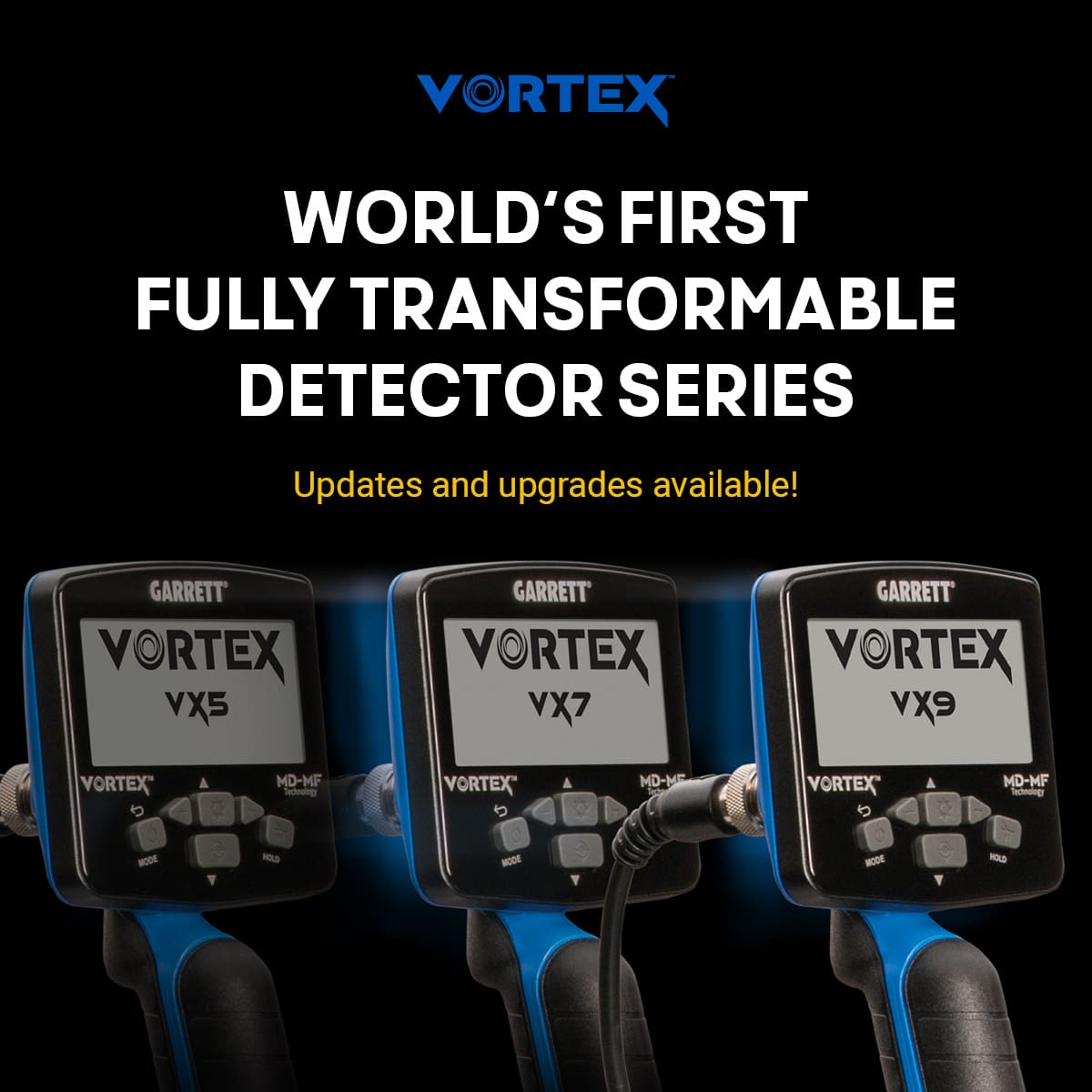

The world’s first fully upgradeable underwater metal detector series! As your skills increase, you can transform your VX5 to a VX7 or VX9 with paid software upgrades. Each Vortex model upgrade includes additional operating frequencies, more advanced features, and more power to enhance your treasure-hunting experience!

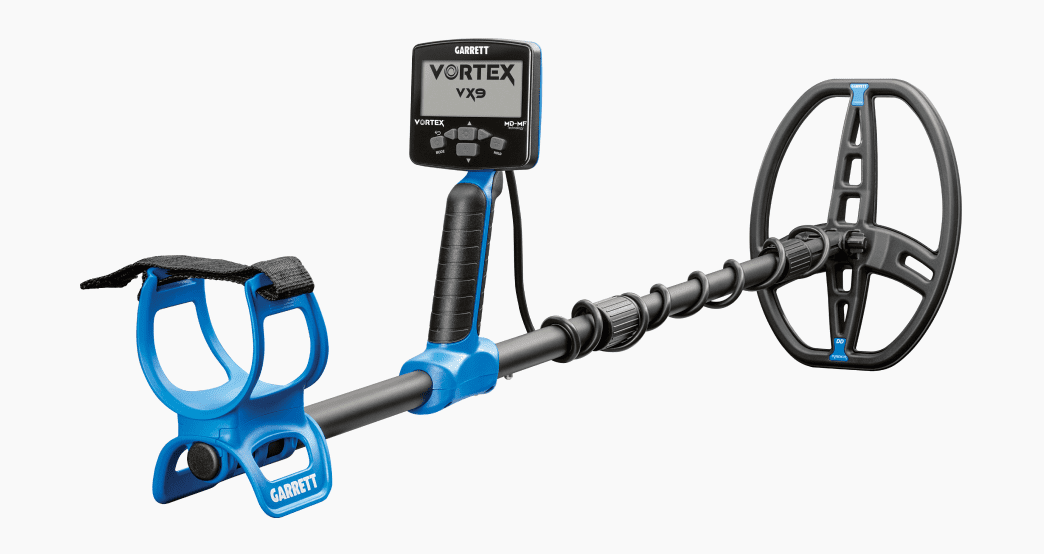

Proudly made in America, all Garrett metal detectors come with a 3-year limited warranty covering defects in materials and workmanship. It’s our commitment to quality, durability, and your long-term peace of mind.
SUBMERSIBLE TO 16 FEET
Search streams, lakes, and the ocean coast with your Vortex.
Garrett Vortex Submersible Headphones with a 1/8″ (3mm) jack are sold separately.

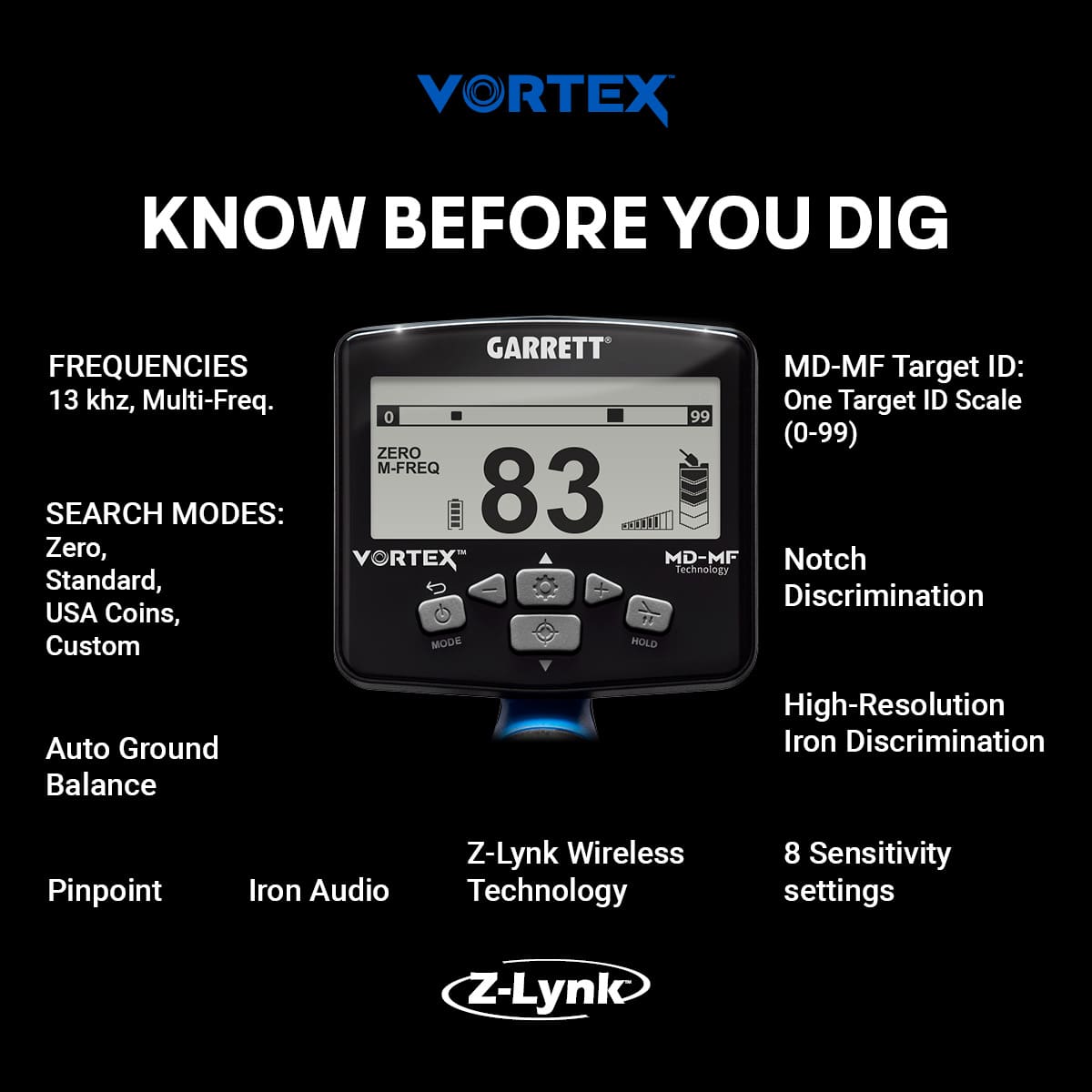

SEARCH WITH CONFIDENCE
- Fast Target Recovery Speed
- Excellent Detection Depth and Target ID accuracy
- Backlit LCD for night operation
- 3-Tone Audible Target ID
- Rechargeable Battery
Built-in lithium ion battery provides approximately 15 hours of search time per charge. - Lightweight and Collapsible.

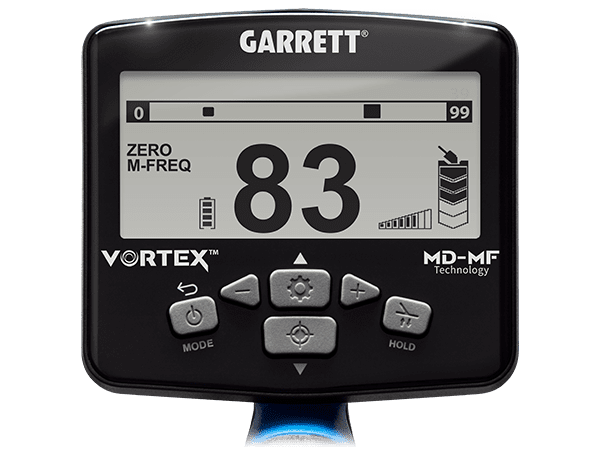

EASY-ACCESS POWERFUL MENU OPTIONS
HI-RESOLUTION GROUND BALANCE
With 175 points of ground balance resolution, this detector offers precise adjustments for environments ranging from ferrous ground to saltwater, ensuring accurate detection in various conditions.
VOLUME CONTROL
For both the built-in speaker and headphones.
EIGHT SENSITIVITY/DEPTH ADJUSTMENTS
FOUR SEARCH MODES + PINPOINT
IRON AUDIO
Garrett’s unique feature accurately identifies complex iron objects, such as bottle caps and steel washers, helping to distinguish valuable targets from unwanted debris.
FREQUENCY SHIFT
Use to reduce noise or electrical interference (EMI)
BLACKLIGHT
Illuminate your LCD screen with the backlit display to easily view target information, even in low-light conditions.

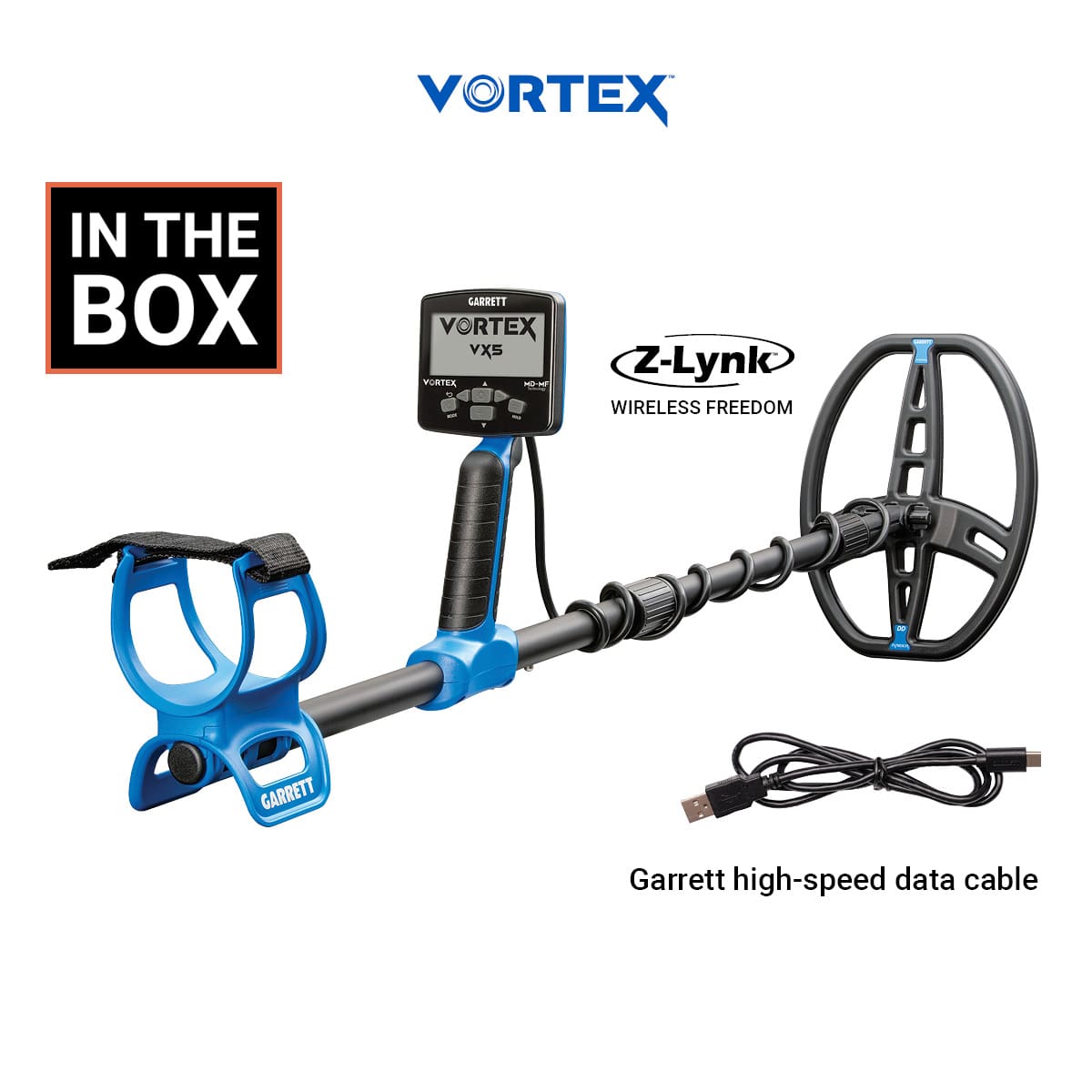

IN THE BOX
Vortex VX5 comes ready for action with everything you need to start detecting:
- VX5 metal detector with advanced multi-frequency technology

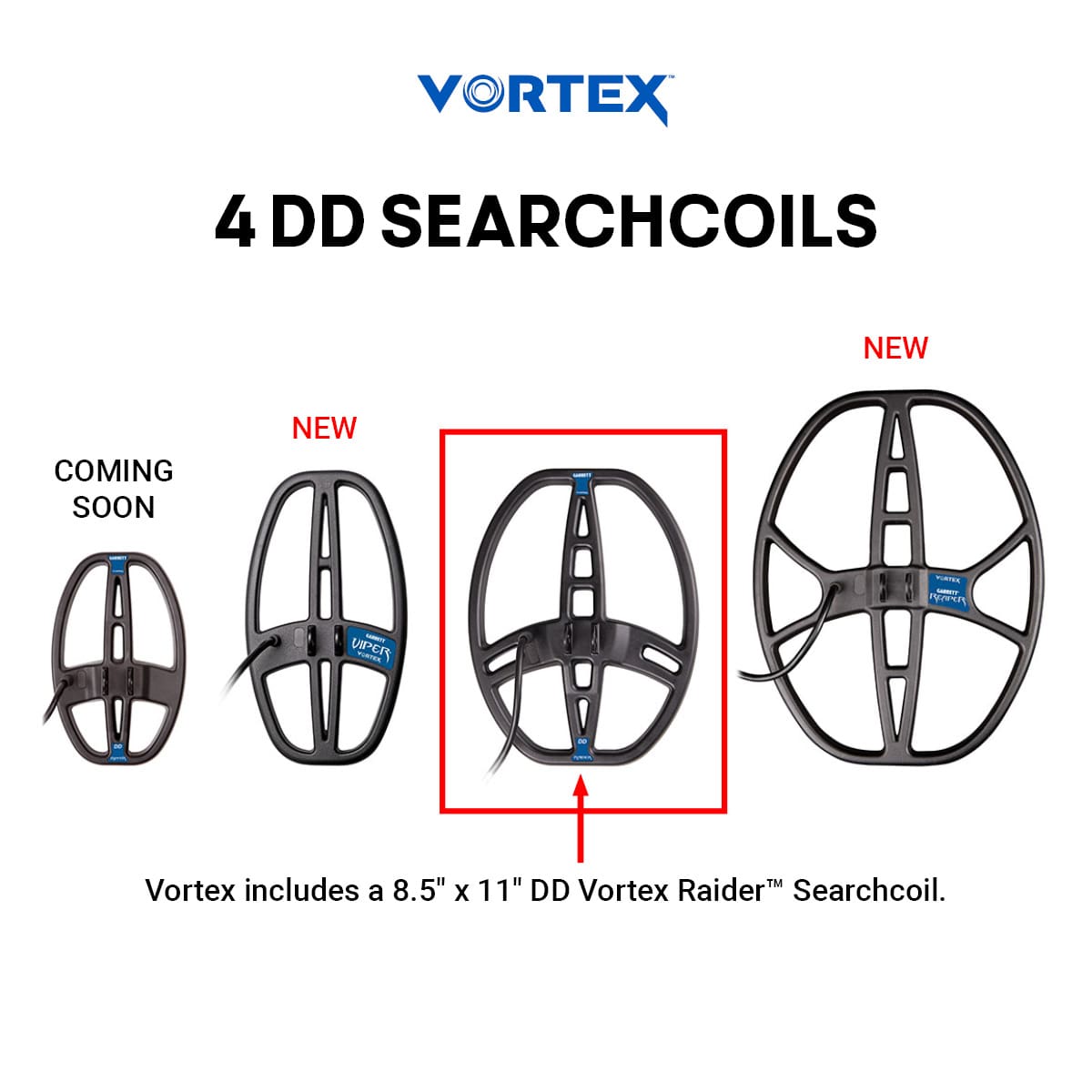

- 8.5″ x 11″ DD Vortex Raider™ Searchcoil
- High speed USB charging/data cable
- Premium armrest strap
- Quick-start guide and user manual
VORTEX ACCESSORIES
Garrett Vortex Submersible Headphones – ⅛-inch jack
Robust underwater headphones designed to work specifically with Vortex series detectors. ?-inch jack
Garrett ClearSound Easy Stow Headphones – ⅛-inch jack
Portable, affordable quality headphones with ?-inch jack.
Garrett MS-3 Z-Lynk Wireless Headphones
Premium sound quality with wireless freedom. Comfortable full-ear cushions.
Garrett Vortex 6″ x 11″ DD Viper Searchcoil
This narrow DD-format coil provides excellent maneuverability, target separation, and depth.
Garrett Vortex 14″ x 11″ DD Reaper searchcoil
This large size DD-format coil is designed for deeper detection depth and for covering more terrain with each sweep of the coil.
Vortex Series Comparison Chart
| VORTEX VX5 | VORTEX VX7 | VORTEX VX9 | |
|---|---|---|---|
| MD-MF Target ID Scale | One Target ID Scale (0-99) | 2-tier Target ID Scales | 3-tier Target ID Scales |
| Frequencies | 13 khz, Multi-Freq. | 5, 13 kHz, Multi-Freq., Multi Salt | 5, 9, 13, 18, 25 kHz, Multi-Freq., Multi-Salt |
| Search Modes | Zero, Standard, USA Coins, Custom | Zero, Standard, USA Coins, Beach, Custom | Zero, Standard, USA Coins, Thin Coins, Beach, Custom, Fast |
| Bottlecap Reject (MF function) | Fixed | Yes – 4 Settings | Yes – 6 Settings |
| Iron Boundary (MF function) | Fixed | Yes – 4 Settings | Yes – 6 Settings |
| Notch Discrimination | Yes | Yes | Yes |
| High-Resolution Iron Discrimination | Yes | Yes | Yes |
| Sensitivity settings | 8 | 8 | 8 |
| Variable Recovery Speed | Fixed | Yes – 2 Settings | Yes – 3 Settings |
| Z-Lynk Wireless | Yes | Yes | Yes |
| Channel (EMI Reduction) | Yes | Yes | Yes |
| Increased sensitivity/depth | N/A | Yes | Yes |
| Auto Ground Balance | Yes | Yes | Yes |
| Number of Tones | 3 | 3,5 | 2,3,5 |
| Volume Control | Yes | Yes | Yes |
| Iron Audio | Yes | Yes | Yes |
| Iron Volume | Yes | Yes | Yes |
| Button Lock (Dive Mode) | Yes | Yes | Yes |
| Pinpoint | Yes | Yes | Yes |
| LCD Backlight | Yes | Yes | Yes |
| Battery Condition Indicator | Yes | Yes | Yes |
| Length (Adjustable) | 24.75″ to 56.75″ (62.86 cm – 144.14 cm) | 24.75″ to 56.75″ (62.86 cm – 144.14 cm) | 24.75″ to 56.75″ (62.86 cm – 144.14 cm) |
| Total Weight (with 8.5″ x 11″ coil) | 3 lbs (1.38 kgs) | 3 lbs (1.38 kgs) | 3 lbs (1.38 kgs) |
| Fully Waterproof to | 16 ft (5m) | 16 ft (5m) | 16 ft (5m) |
| Warranty | 3 Years, Limited Parts/Labor | 3 Years, Limited Parts/Labor | 3 Years, Limited Parts/Labor |
