The Pinnacle Of Multi-frequency Detection Flexibility

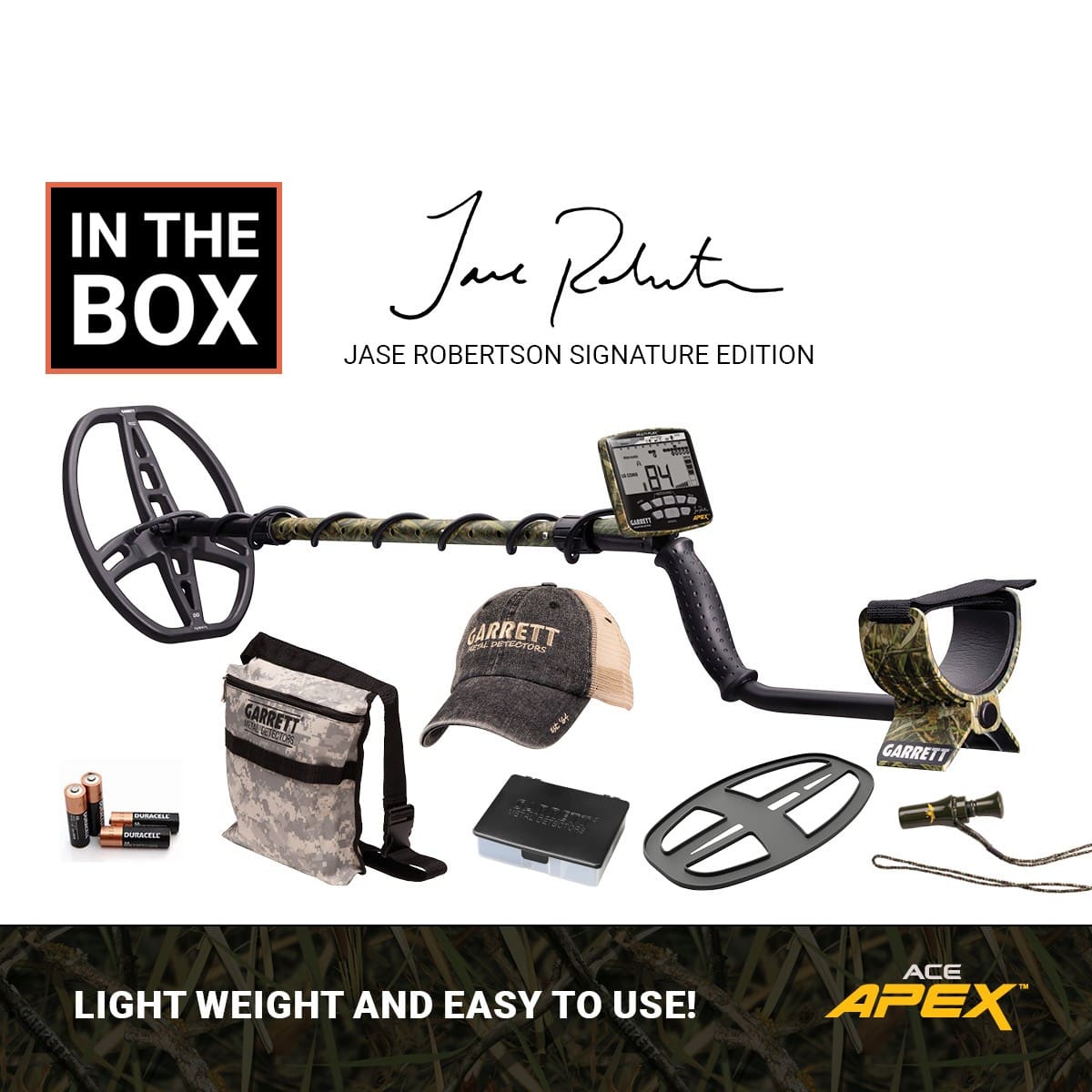

| PN: 1142363 | ACE Apex Jase Robertson Signature Edition with 8.5" x 11" DD Multi-Flex Raider™ searchcoil, coil cover, and Duck Commander® duck call with lanyard | |
The Power of Choice is Yours
APEX FREQUENCY OPTIONS
5 kHz | 10 kHz | 15 kHz | 20 kHz | Multi-Frequency | Multi-Salt
COMPLETE FLEXIBILITY
Garrett’s Multi-Flex technology, fueled by a cutting edge, broad-bandwidth digital platform, simply gives you more versatility with the Apex than can be found on any detector in its price range!
Choose from powerful single frequencies to enhance detection on specific targets*, or select one of Apex’s simultaneous multifrequency modes to achieve excellent detection on all targets in all soils.
* Note: lower frequencies generally offer improved detection on larger and more conductive targets (i.e. large silver coins). Higher frequencies generally offer improved detection on smaller and less conductive targets (i.e., hammered silver coins, gold nuggets).
IRON VOLUME:
CONTROL WHAT YOU HEAR
IRON VOLUME allows user to decrease the volume of iron targets, while the volume of non-ferrous targets remains at normal level. Experienced treasure hunters often like hearing all targets, but will appreciate the option to decrease volume of undesired items.
With eight Iron Volume adjustments, Apex offers more flexibility than any other detectors in its price range.
CLICK ABOVE FOR IRON VOLUME™ DEMONSTRATION!
Simplicity... With Full Control
INTUITIVE AND EFFICIENT CONTROLS
Direct drive buttons for most frequently used controls. Easy-access menu adjustments for other controls.
SIX DETECTION MODES + PINPOINT
Zero, Coins, US Coins (with coin icons), Jewelry, Relics, and Custom
HI-RESOLUTION GROUND BALANCE
175 points of ground balance resolution (like the Garrett AT Max), ranging from ferrous ground to saltwater.
LARGE TARGET ID NUMBERS
RECHARGEABLE BATTERY
Built-in rechargeable lithium ion battery provides up to approximately 15 hours of use, depending on setting. Micro-USB charging cable included.
IRON AUDIO
Garrett’s unique feature helps to correctly identify complex iron objects, such as bottle caps.
5-TONE AUDIBLE TARGET ID
Five distinct tones provide greater audible target identification than on previous Garrett detectors.
HYBRID AUDIO SYSTEM
The Apex target audio provides the simplicity of binary audio (found on existing ACE detectors) with the additional benefits of subtle proportional audio for faint targets.
HI-RESOLUTION DISCRIMINATION
Twenty pixels of Notch Discrimination, including 8 pixels of Iron.
BACKLIT LCD
VOLUME CONTROL
For both the built-in speaker and headphones.
EIGHT SENSITIVITY/DEPTH ADJUSTMENTS
1/8” JACK for optional wired headphones
BUILT-IN Z-LYNK WIRELESS TECHNOLOGY
Up to 6 times faster than Bluetooth. Hunt without the cords!
APEX Training Videos
Assembly
APEX Battery Charging
APEX Quick Start Guide
APEX Target ID and Tones
APEX Menu Settings
APEX Z-Lynk Wireless Operation
APEX Multi-Flex Multi-Frequency Operation
APEX Searching Saltwater Beaches
APEX Search Modes
Pinpointing
Iron Audio and Iron Volume
Notch Discrimination
Auto Ground Balance
Eliminating Interference On Apex
Pairing Your Z-Lynk Pro-Pointer
Apex Iron Separation Tests
Understanding Iron Masking and Target ID
Apex Multi-Flex Raises the Bar
Apex's NEW RIPPER and RAIDER Searchcoils
Garrett Design Engineer Brent Weaver discusses Apex
Accessories
Standard and optional searchcoils for Garrett’s detectors, and protective searchcoil covers.
Jase Robertson Signature Edition Comparison
|
|
|
|
|---|---|---|---|
| Multi-Flex™ Technology | - | ✔ | - |
| Single Frequency Options | 13.6kHz | 5, 10, 15 and 20 kHz | 8 kHz |
| Multi-Frequency Options | - | Simultaneous Multi-Freq. and Multi-Salt | - |
| Z-Lynk™ Wireless Technology | Yes (With MS-3 Z-Lynk headphones included) | Yes | - |
| Backlight | ✔ | ✔ | - |
| Iron Audio | ✔ | ✔ | NO |
| Iron Volume Control | - | ✔ | - |
| Iron Discrimination Segments | 44 | 8 | 4 |
| True All-Metal Mode | ✔ | - | - |
| Volume Adjustment | ✔ | ✔ | - |
| Notch Discrimination | ✔ | ✔ | ✔ |
| Search Modes | 4, all Pro Audio | 6, with International and U.S. Coins modes | 5 (Plus Pinpoint) |
| Large Digital Target ID | 0 to 99 scale | 0 to 99 scale | 0 to 99 scale |
| Proportional Audio | ✔ | hybrid binary/proportional | - |
| Sensitivity/ Depth Adjustments | 8 | 8 | 8 |
| Threshold Adjustment | ✔ | - | - |
| Ground Balance, Auto/Manual | ✔ | Auto, High Resolution, 175 pts | - |
| Ground Balance Window™ | ✔ (Automatic) | - | - |
| Pinpoint | ✔ | ✔ | ✔ |
| Waterproof | ✔ (to 10 feet / 3m) | - | - |
| Waterproof coil/stem | ✔ | ✔ | ✔ |
| Rainproof control box | ✔ | ✔ | - |
| Audio Tone ID Levels | 3 | 5 | 3 |
| Target Depth Indicator | ✔ | ✔ | ✔ |
| Standard Searchcoil | 6" x 11" DD Viper™ AT | 6" x 11" DD Viper™ or 8.5" x 11" DD Raider™ | 7" x 10" concentric PROformance™ |
| Length (Adjustable) | 43" to 56" (1.09m - 1.4m) | 40" to 53" (1.016m - 1.35m) | 42" to 51" (1.06m - 1.29m) |
| Power | 4 AA (included) | Rechargeable Lithium Ion Battery, built-in | 4 AA (included) |
| Battery Condition Indicator | ✔ | ✔ | ✔ |
| Warranty | 3 Years, Limited Parts/Labor | 3 Years, Limited Parts/Labor | 3 Year, Limited Parts/Labor |
| One-Touch Treasure Hunting | ✔ | ✔ | ✔ |
| Camlocks for more stem stability | ✔ | ✔ | ✔ |
| Total Weight | 3.03 lbs (1.4 kgs | 2.5 lbs (1.13 kgs) with Viper™ coil | 2.8 lbs (1.27 kgs) |
