RECON PRO AML-1000™

Garrett RECON-PRO® AML-1000™

RECON PRO AML-1000™

All Metals Locator. Advanced PI Technology.
4 options to choose from (click to view)

Full Operational Versatility


MILITARY:
apid deployment for mines, UXO, and IED search.

HUMANITARIAN:
Highly dependable with deep detection capability.

Optimum Detection Sensitivity


Low metal content targets to large metallic items are detected in ALL soils and shallow water with full detection capability.

Designed for military and industrial use where user interface is more controlled.

Includes standard 8” (20cm) search head.

True Non-Motion Mode (static) search operation.
Easy Transport!
Only 19.8 inches (504 mm) when folded.

The RECON-PRO easily collapses and folds to a compact size for storage in its backpack or watertight transport case.
Compact. Rugged. Waterproof.

Easy Access Adjustments


Single push-button controls for Sensitivity, Tone ID, RFI Noise Elimination, and Adjustable Audio Threshold can be adjusted with one hand.

Operators can quickly set up the Recon Pro as required and fully concentrate on detection tasks.
Choose a Package that Fits Your Needs
4 Recon Pro package options available:
Package Option 1
RECON-PRO, AML 1000
Part No. 1220000

Complete kit, including 20cm search head, tactical headset, charging set, NiMH batteries (2 sets), field back pack, hard carry case, test piece, field guide, operational manual and DVD.
Package Option 2
RECON-PRO, AML 1000/C
PN: 1220002

Compact kit, including 20cm search head, carry bag, tactical headset, alkaline batteries, field guide.
Package Option 3
RECON-PRO, AML/UXO
Part No. 1220010

Complete kit, including 38 x 50cm search head, tactical headset, charging set,NiMH batteries (2 sets), field back pack, hard carry case,test piece, field guide,operational manual and DVD.
Package Option 4
RECON-PRO, AML 1000/UXO
Part No. 1220020

Complete kit, including 20 cm and 38 x 50cm search heads, tactical headset, charging set, NiMH batteries (2 sets), field back pack, hard carry case, test piece, field guide, operational manual and DVD.
External speaker allows Recon Pro to be used with or without headphones for full field versatility.

Technical Specifications

Detector Length 19.8 in./504 mm (folded)
63 in./1600 mm (extended)
Weight 6.25 lbs. (2.83 kg) for detector;
24.15 lbs. (10.95 kg) w/case.
Detection Technology Advanced Pulse Induction Technology (APIT)
Water and Dust Protection IP 67
Design Standard MIL STD 810 F
Warranty 24 months, Limited Parts/Labor
Operating Temperatures Humidity to 95% non-condensing.

Alkaline, NiMH batteries: -10°F (-23°C) to 149°F (65°C).

Lithium batteries:-40°F (-40°C) to 149°F (65°C).

Storage temperature (without batteries): -72°F (-58°C) to 158°F (70°C).
Power Eight (8) rechargeable AA cells. Charger and extra set rechargeable batteries included. Alkaline batteries optional. Average operation time with fresh batteries is 10–12 hrs.
Target Alerts Adjustable audio volume/LED bar
Select the right accessories to complete your Recon Pro All Metals Locator kit.
  • Headphones.
  • Carrying cases.
  • Rechargeable batteries.

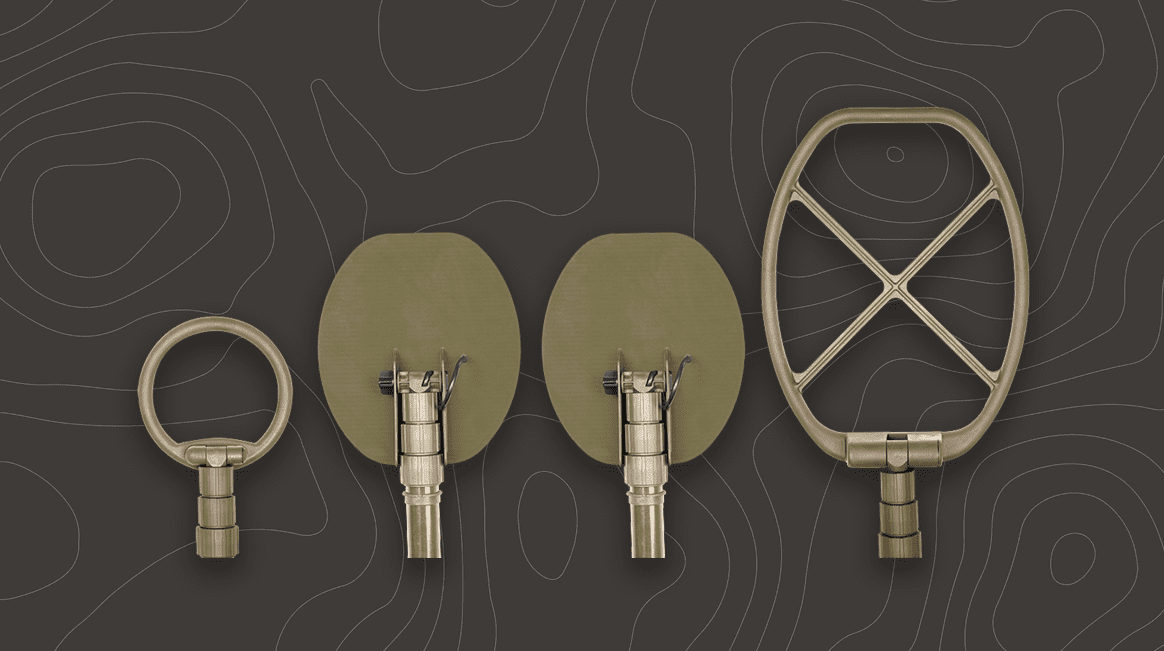

Standard and optional search heads available for Garrett Recon Pro detectors.
