Garrett Quick-Q Software Package
Using Quick-Q software. Alarm on guns, but allowing phones to pass.

Advanced Security Scanning Technology

Garrett is the industry leader with superior pinpoint detection technology and unmatched discrimination features. The Quick-Q™ technology sets the standard for today’s need to provide quicker venue access into stadiums, arenas, outdoor events, convention centers and concert halls. This technology has the effectiveness of moving high volumes of patrons through events by reducing line queues and large crowds outside the venue.

When used with Garrett’s enhanced walk-through metal detectors, the Quick-Q™ technology does not require the divestment of cell phones or other small metallic items. This should reduce the number of items divested as fans are screened and improve ingress through-put rates.





Key Features

  • Our dual-panel scanning technology offers more accurate detection and discrimination, left-center-right, head-to-toe
  • Quick-Q technology means we quickly speed you through the scanning process and alleviate line queues
  • Crowd reduction outside of each venue
  • Fewer false alarms
  • Faster lines
  • Industry leading technology
  • This software package does not impact Safety Act certifications or submissions

Part No. 1628500 for use with Garrett PD 6500i.

Note: Comes Standard with Garrett Paragon


Download Quick-Q brochure (PDF)

Explore

Walk-Through Caster Sets
Includes two (2) rigid locking casters and two (2) swivel locking casters.

  • Ideal for schools, special events, and stadium use.
    Allows full mobility of PD 6500i walk-throughs by one person. No Lifting required. Move the detectors to a secure location when not in use and provide an unimpeded exit at the close of an event.
  • Extreme stability combined with portability.
    Two fixed casters with locking devices provides stable detector operation, while two swivel casters with locking devices provide maneuverability. The assembly can be permanently attached to walkthrough’s base.
  • All terrain environment design.
    3-inch wheels allow movement over any hard surfaces. Durable, powder coated steel allows use in all types of environmental conditions. For wind speeds up to 20 mph (32 kph). Available with swivels on either 2 or 4 wheels.


Shipping weight: 21 lbs (9.5 kg)
Shipping size: 40 1/4" x 8 5/8" x 5"

Walkthrough with casters will roll through doors more than 89" in height without having to tilt the unit.


Part No. 1169101 for use with Garrett Paragon, PD 6500i, and Multi Zone (MZ 6100).

Battery Modules
These optional battery modules are field-installable assemblies. While recharging, a monitoring circuit allows the batteries to charge in minimal time and then switches to trickle charge to ensure maximum charge without battery damage. The charge status is indicated on the LCD of the Garrett walk-through detector’s control panel and an alarm warns the operator when batteries are low.


Paragon Lithium Battery Module, 14 A-Hr

With the click of a button, users can swap out Garrett’s high-capacity rechargeable batteries in seconds. No tools required. This ease-of-use feature dramatically extends the life of any walkthrough operating in a remote location where AC service is not available. The charge status is indicated on the control panel screen.

  • Recommended for portable applications where battery is the primary power source.
  • Recommended for high usage application up to 2000 charge cycles.
  • Typical ten (10) hours battery operation per full charge.

Part No. 2238000 for use with Garrett Paragon only.

PD 6500i Battery Module, lithium ion
  • Recommended for portable applications where battery is the primary power source.
  • Recommended for high usage application up to 2000 charge cycles.
  • Includes red status light, indicating whether battery is in the process of charging or is fully charged.
  • Includes a quick change bracket for fast battery replacement. Requires a 3/8" wrench.
  • Typical ten (10) hours battery operation per full charge.
Part No. 2225420 for use with Garrett PD 6500i only.

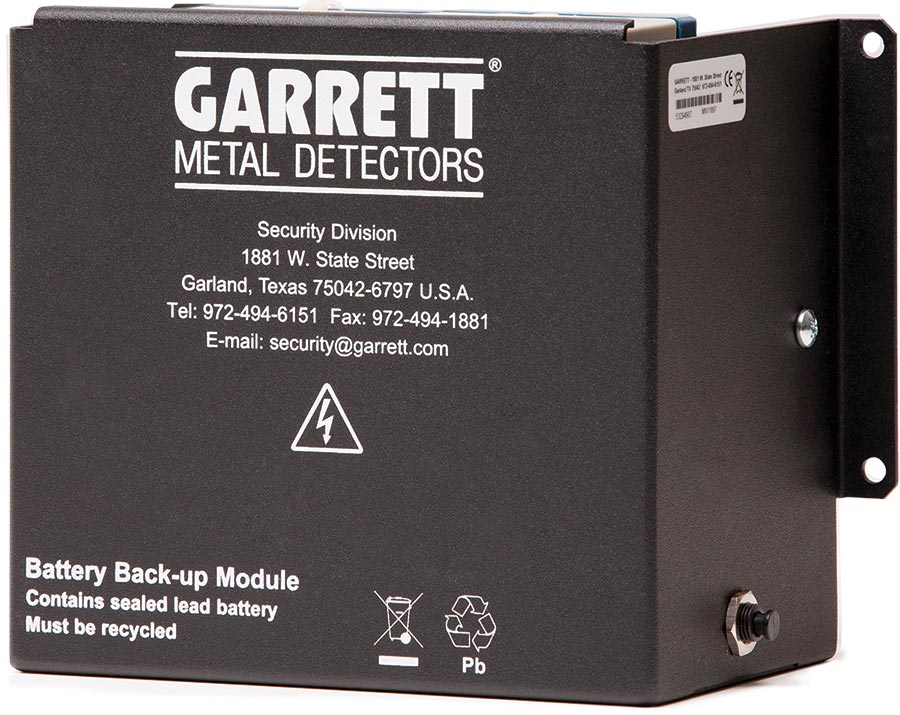

PD 6500i Battery Module, gel cell
  • Recommended for use as an emergency battery backup source, where life cycle is limited (200 to 400 cycles).
  • 14 A-Hr Battery provides approximate 10 hours battery operation per full charge.
Part No. 2225410 for use with Garrett PD 6500i only.

NOTE: When equipping older walk-through detector units with this battery module, please check with the Garrett factory to acquire the proper software revision that may be required to provide accurate charge indication.

Multi Zone (MZ 6100) Lithium Battery Module, 1.5 A-Hr
  • Up to one (1) hour of operation.
Part No. 1171300 for use with Garrett Multi Zone (MZ 6100) only.
Multi Zone (MZ 6100) Lithium Battery Module, 14 A-Hr
  • Recommended for portable applications where battery is the primary power source.
  • Recommended for high usage application up to 2000 charge cycles.
  • Includes a quick change bracket for fast battery replacement. Requires a 3/8" wrench.
  • Typical ten (10) hours battery operation per full charge.
Part No. 1171400 for use with Garrett Multi Zone (MZ 6100) only.

Networking / Monitoring Accessories
iC Module
The iC Module allows users to communicate to a walk-through metal detector with a laptop or desktop PC through the network either wired or wirelessly. It allows control, real time monitoring and diagnostics from a remote location. The internal memory records all changes to settings and passenger traffic and alarm history for analytical evaluation.
  • Gain real-time access to all walk-through detectors on your network.
  • Utilize group management function to organize multiple walk-throughs by location and name (ex. North Entrance: WT1, WT2, etc.)
  • Adjust settings such as programs or base sensitivity for multiple walk-through detectors all at one time using the group management function.
  • Analyze security checkpoint alarm rates, patron counts and other diagnostic statistics.
  • Check settings and diagnose issues with detectors on your network.
Part No. 1171600 for use with the Garrett PD 6500i, or Multi Zone (MZ 6100).
Garrett Wireless Sync SM 100
  • For use in operating multiple Garrett PD 6500i walkthroughs.
Part No. 1168800 for use with Garrett PD 6500i only.

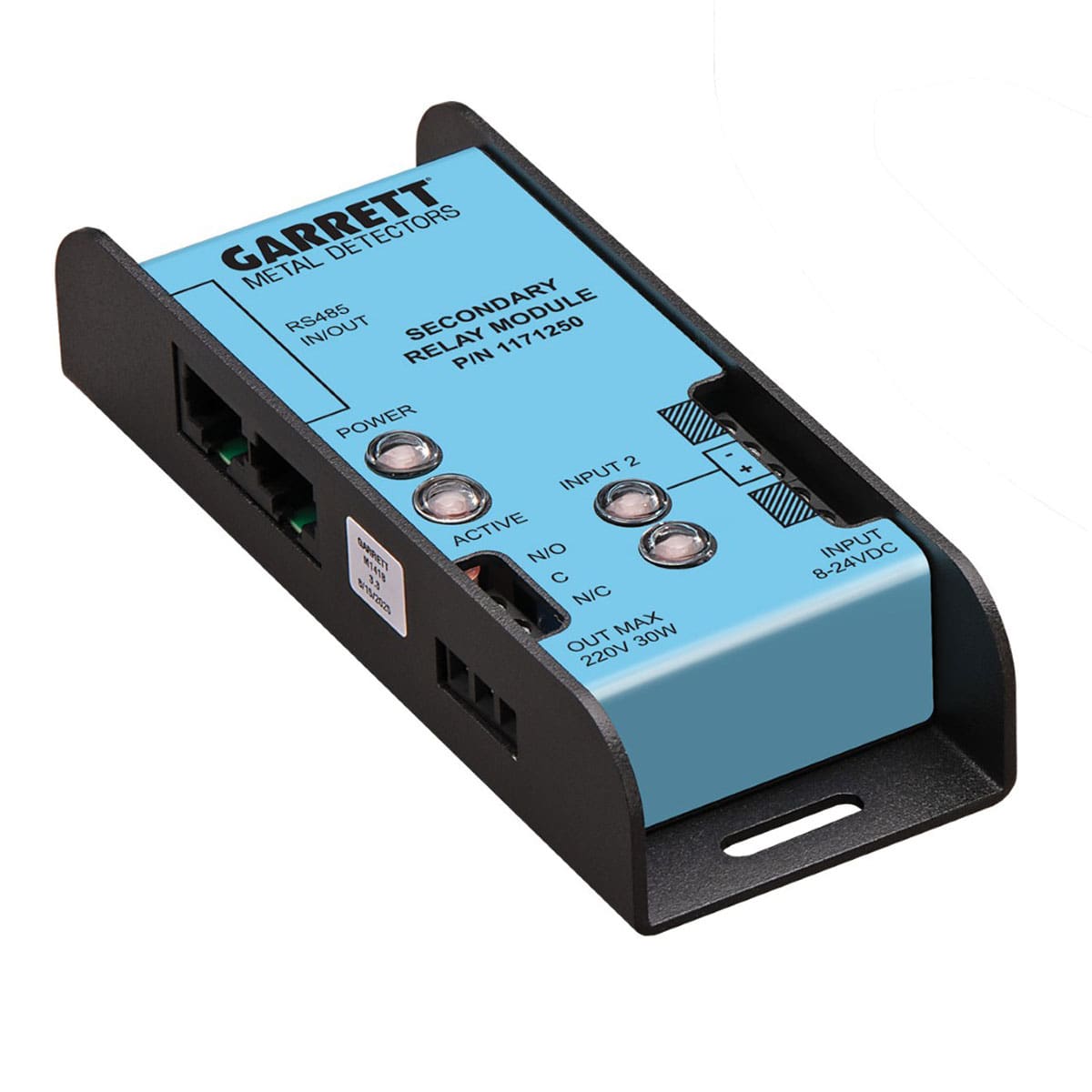

Relay Module
Provides an isolated relay contact to control lights, doors, equipment. Internal dip switches provide 4 operating modes
  • Activate on alarm
  • Activate on passage of each patron
  • Activate on alarm, release on non-alarm
  • Activate on non-alarm for 5 seconds
Part No. 1171200 for use with Garrett Paragon, PD 6500i, or Multi Zone (MZ 6100).
PD 6500i DESKTOP REMOTE CONSOLE WITH ZONE INDICATION
For remote operation of the detector
  • Includes 50-foot cable. (optional lengths available)
Part No. 2266400 for use with Garrett PD 6500i only.
Multi Zone (MZ 6100) DESKTOP REMOTE CONSOLE WITH ZONE INDICATION
For remote operation of the detector
  • Includes 50-foot cable. (optional lengths available)
Part No. 1171100 for use with Garrett Multi Zone (MZ 6100) only.

Paragon IR Remote Control
Part No. 1169600 for use with Garrett Paragon only.
PD 6500i Remote Control
Part No. 1169400 for use with Garrett PD 6500i only.
Multi Zone (MZ 6100) IR Remote Control
Part No. 1169500 for use with Garrett Multi Zone (MZ 6100) only.

Zone Indicator Set, Panel B, MZ 6100
Provides pacing light and zone indicators on entry and exit sides of both panels. Factory installation recommended.

Part No. 1171700 for use with Garrett MZ 6100 only.

Mobility / Stability Accessories
Stabilizer Base
2 included.

Part No. 1603901 for use with Garrett PD 6500i or Multi Zone (MZ 6100).
Paragon Adhesive Floor Mount Kit
4 included.

Part No. 1630200 for use with Garrett Paragon only.
Adhesive Floor Mount Kit
Adhesive Floor Mount Kit
4 included.

Part No. 1604101 for use with Garrett PD 6500i and Multi Zone (MZ 6100).
Universal Transport Brace
Provides a collapsible solution that supports the walk-through metal detector during transportation.

Part No. 1630400 for use with all Garrett walk-throughs, (30" and 32.5")

Security Test Pieces
Operational Test Piece (OTP)
Designed to FAA 3-gun test requirements.

Part No. 1600600 can be used with all Garrett model detectors.
Flat Test Piece (FTP)
Designed to represent a small knife or box cutter.

Part No. 1620570 can be used with all Garrett model detectors.

Cords / Cables / Misc. Accessories
5 ft. Charging Cord
Allows charging multiple walkthroughs from a single power source.

Part No. 9436900 can be used with all Garrett model detectors.
10 ft. Jumper Cord
Allows multiple walk-through units to be linked to the same power source when operated in close proximity.

Part No. 9431900 can be used with all Garrett model detectors.
Cable Feedthrough Kit
Allows waterproof connection of power cord through the top of a detection head.

Part No. 1605300 can be used with all Garrett model detectors.
Cover Support
Use with or without Garrett Environmental Cover (Part No. 1627030). Provides extra rain protection when secured to the top of a PD 6500i walk-through detector or when zipped into the Environmental Cover.

Part No. 9884900 for use with Garrett PD 6500i only.
Environmental Cover, Soft
High quality UV-resistant, anti-mildew nylon cover. Protects walkthrough electronics from heavy rain and dust. Clearview window panels over touchpads, optics, and zone indicators.

Part No. 1627030 for use with standard 30" width Garrett PD 6500i only.

Part No. 1627032 for use with 32" width Garrett PD 6500i only.
6" Pocket Item Container
For placement of pocket items prior to screening.

Part No. 1601200 for use with all Garrett model detectors.
Speed Assembly Kit
Quick screws with knurled hand knobs for easier hand tightening. Comes with 8 screws.

Eliminates the need for tools when assembling and disassembling a walk-through.


Part No. 1611100 for use with Garrett Paragon, PD 6500i, or Multi Zone (MZ 6100)
Divesting Table
60" Length
18" Width
29.5" Height

Part No. 1628300
Garrett Security Screening Floor Mat

Size: 2’ x 3’

Expedite your checkpoint: Screening mat indicates the proper foot location/stance for each patron while screening procedures are performed.

Slip resistant: Commercial grade nylon dye fabric with washable rubber backing.


Part No. 1619500

Garrett Walkthrough Storage Cover

Designed to protect Garrett Paragon, PD 6500i, Multi Zone (MZ 6100), and SmartScan walk-through metal detectors

Protect your investment: Protect your walkthrough electronics from heavy rain and dust with this light weight and durable water repellent black polyester cover. Includes Urethane coated fabric with black tricot backing to avoid scratches.

One size fits all: Cover is flexible enough to fit over both 30" and 32" Garrett Paragon, PD 6500i, and MZ 6100 walkthrough detectors.

Note: For winds speeds up to 25 mph (40 kph)

Part No. 1628800
